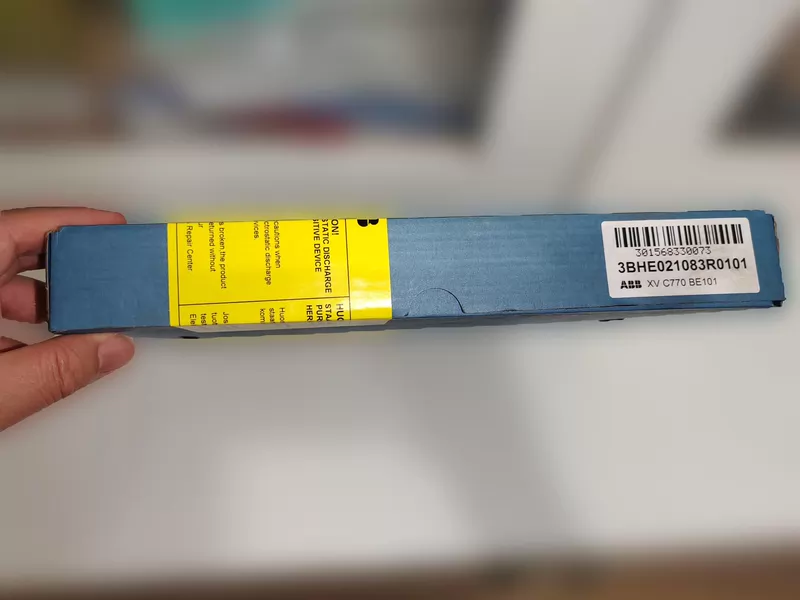

ABB XVC770BE101 High Voltage Isolation Board – Secure Operation
Achieve secure and efficient power isolation with this ABB board, built for high-voltage DC systems and harsh industrial conditions.
| Brand Name | ABB |
| Model No. | XVC770BE101 |
| Input Voltage | 1000V DC |
| Origin | Switzerland |
| Net Weight | 1.8 kg |
| Product Dimensions | 15 x 10 x 5 cm |
| Warranty Period | 3 years |
| Compliance | CE, UL 508, IEC 60947-1 |
| Part Number | XVC770BE101 |
| Included Items | 1x ABB XVC770BE101 Isolation Board, 1x Connector Kit, 1x Installation Guide |
| Isolation Voltage | 2500V |
| Input Voltage Range | 600-1000V DC |
| Output Current | 10 A |
| Operating Frequency | 50/60 Hz |
| Protection Rating | IP20 |
| Response Time | < 2 ms |
Key benefits: • Enhanced safety with galvanic isolation
• Fast response protects sensitive equipment
• Compact and rugged design
• Easy integration with existing ABB systems
Typical applications: Solar inverters, battery storage systems, industrial DC drives
Lifecycle: Active
