Description

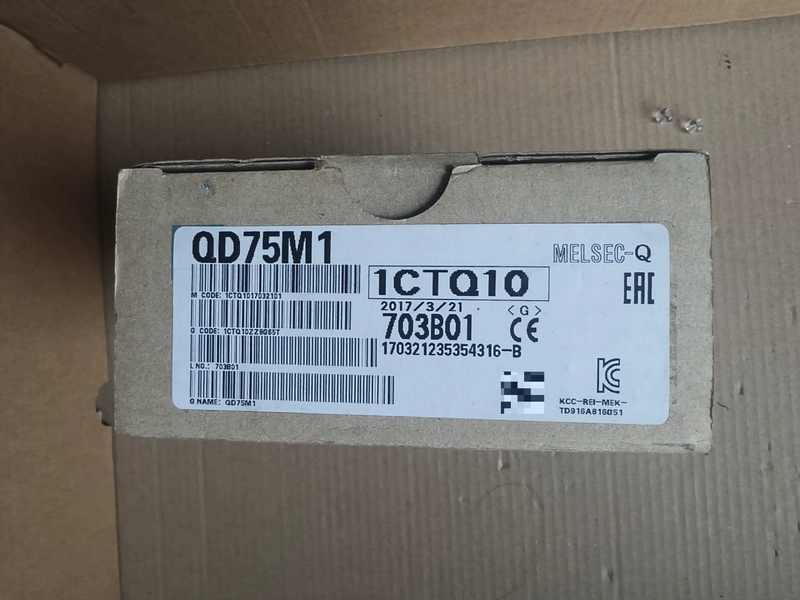

Mitsubishi QD75M1
High-precision single-axis positioning module for MELSEC-Q PLC systems enabling accurate motion control of servo and stepper motors
| Brand | Mitsubishi |
| Model | QD75M1 |
| Voltage | 5V DC (backplane) |
| Country of Origin | Japan |
| Weight | 0.2 kg |
| Dimensions | 98 x 27.4 x 90 mm |
| Warranty | 6 months |
| Certifications | CE, UL, cUL |
| SKU / MPN | QD75M1 |
| What’s in the box | QD75M1 Positioning Module, mounting screws, user manual, connector terminals |
| Series | MELSEC-Q |
| Number of Axes | 1 axis |
| Control Output | Differential driver / Open collector |
| Max Pulse Output | 200 kpps |
| Positioning Points | 600 data per axis |
| Compatible Servo | MELSERVO MR-J3 / MR-J4 series |
Key benefits: Single-axis control up to 200 kpps, supports linear and S-curve acceleration, 600 positioning points per axis, seamless integration with MR-J3/J4 servos, easy programming via GX Works2
Typical applications: Packaging machinery, X-Y tables, labeling machines, conveyor synchronization, pick-and-place systems, semiconductor manufacturing, CNC auxiliary axes
Lifecycle: Active product, long-term availability supported by Mitsubishi Electric
