Description

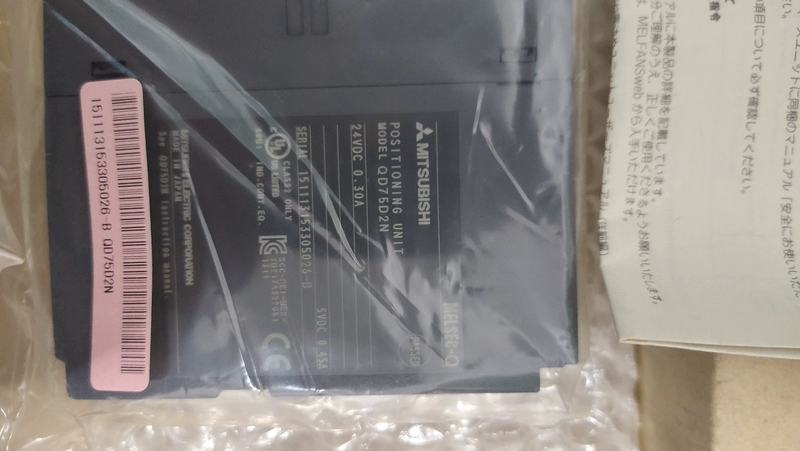

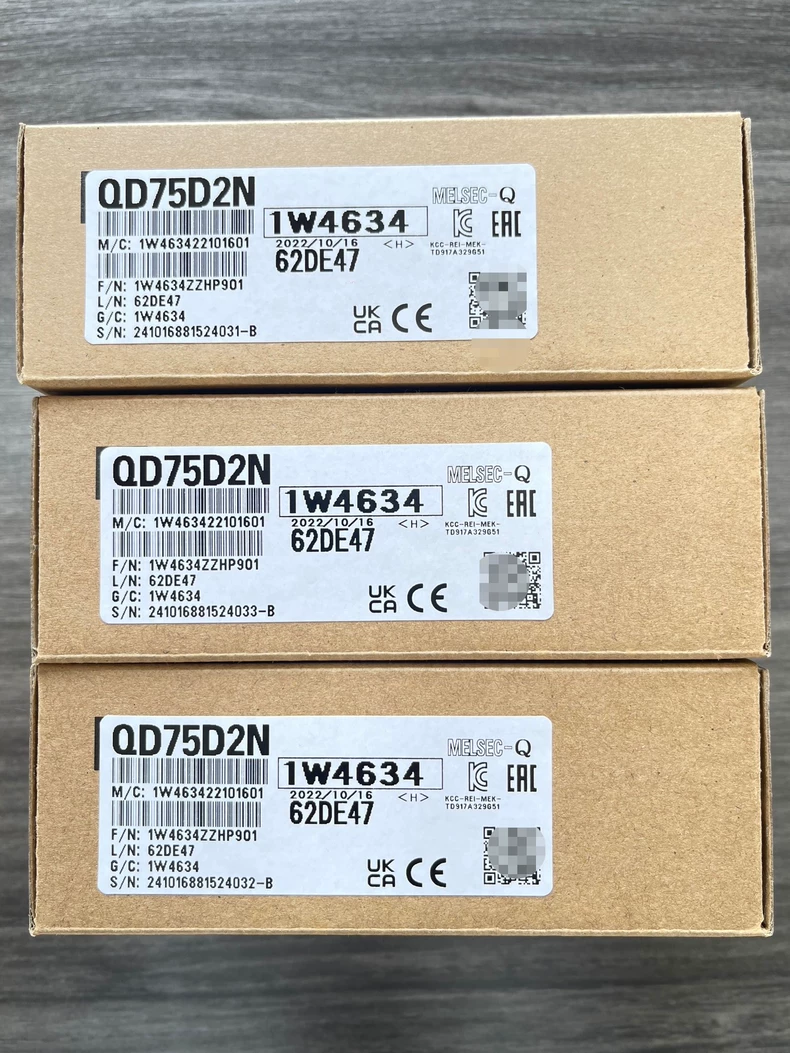

Mitsubishi QD75D2N
High-speed, high-precision 2-axis positioning module for MELSEC-Q series PLCs
| Brand | Mitsubishi |
| Model | QD75D2N |
| Voltage | 5V DC (internal bus) |
| Country of Origin | Japan |
| Weight | 0.2 kg |
| Dimensions | 115 x 50 x 90 mm |
| Warranty | 6 months |
| Certifications | CE, UL, cUL |
| SKU / MPN | QD75D2N |
| What’s in the box | 2-Axis Positioning Module, Installation Manual |
| Number of Axes | 2 |
| Control Method | Pulse train output |
| Max Output Frequency | 4 Mpps |
| Compatible PLC Series | MELSEC-Q |
| Positioning Functions | PTP, linear interpolation, circular interpolation, speed control |
| Mounting | Backplane / DIN rail |
Key benefits: Fast 4 Mpps pulse output, precise multi-axis interpolation, flexible positioning control, easy integration with MELSEC-Q, compact design
Typical applications: CNC machines, pick-and-place systems, X-Y tables, packaging machinery, semiconductor manufacturing equipment
Lifecycle: Active product, long-term availability
