Description

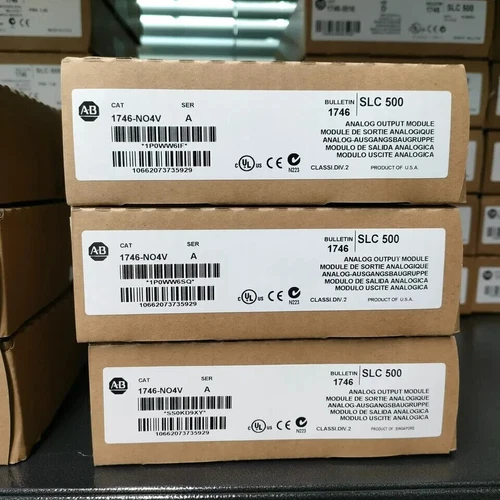

The AB 1746-NO4V is a 4-channel analog output module manufactured by Allen-Bradley specifically designed for the SLC 500 PLC series. It allows you to convert digital signals from the PLC into analog voltage signals to control various industrial equipment.Specifications:Type: Analog Output ModuleSeries: SLC 500Number of Channels: 4Output Type: Analog Voltage (0-10 VDC or ±10 VDC) – Configurable through jumpersVoltage Resolution: 12 bits (provides 4096 discrete voltage levels within the selected range)Output Current: Up to 20 mA per channelBackplane Current Rating: 55 mA at 5 VDC and 145 mA at 24 VDCFeatures:Compact design: Saves space in control cabinets.Screw terminals: Enables easy and secure wiring.Status indicators: LEDs provide visual feedback on the state of each output channel.Jumper-selectable output range: Offers flexibility for controlling different devices with varying voltage requirements (0-10 VDC or ±10 VDC).Compatible with SLC 500 PLC platform: Integrates seamlessly with the Allen-Bradley SLC 500 programmable logic controller system.Applications:Industrial automation systems:Controlling the speed of motors (e.g., AC motor drives) based on PLC signals.Regulating temperature through proportional-integral-derivative (PID) control loops by adjusting heater or cooler outputs.Setting the intensity of lights or other analog devices.
