Description

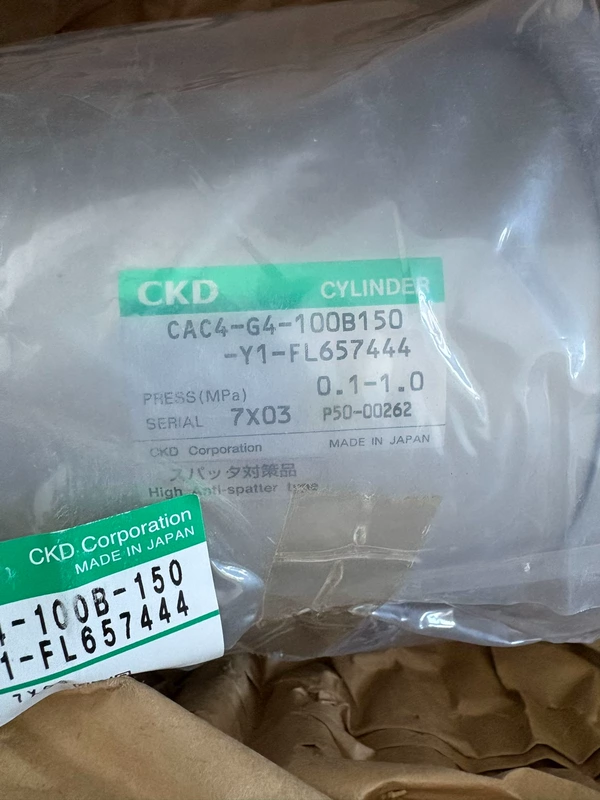

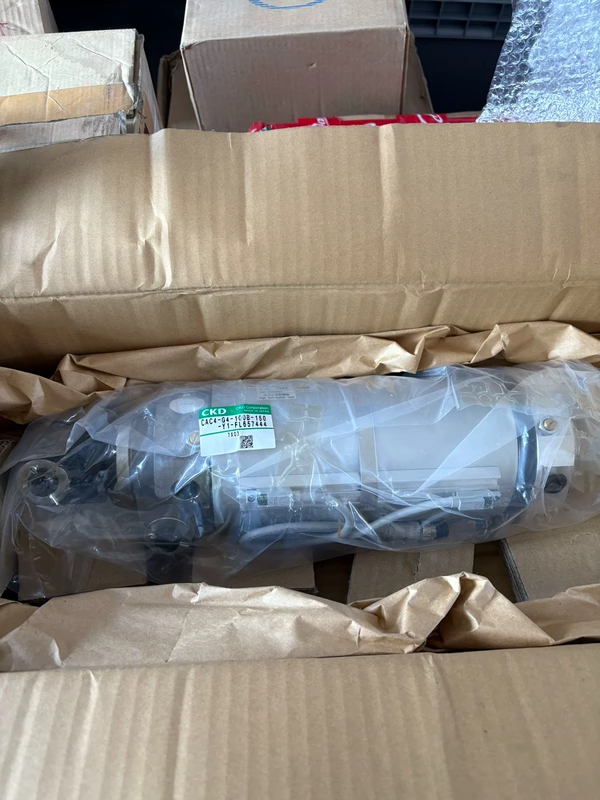

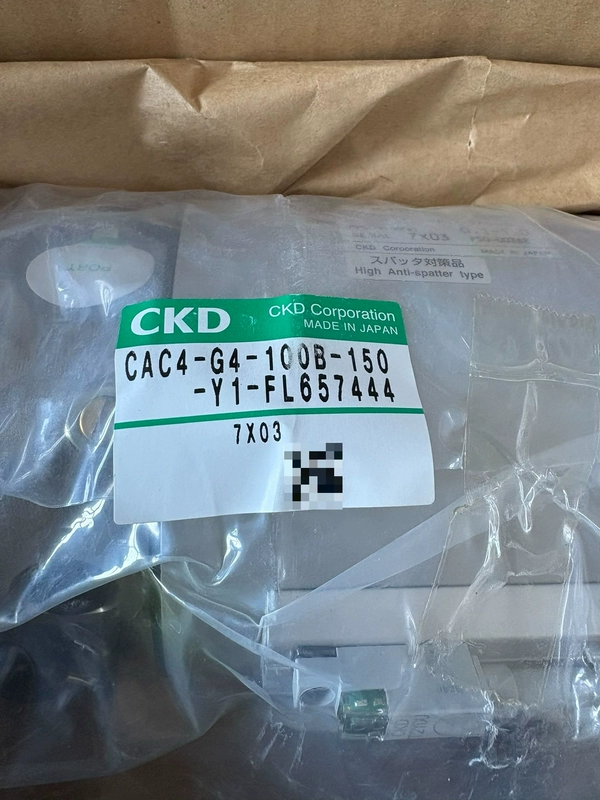

CKD CAC4-G4-100B-150-Y1-FL657444
High-performance double-acting pneumatic cylinder with adjustable cushioning for precise linear motion in industrial automation
| Brand | CKD |
| Model | CAC4-G4-100B-150-Y1-FL657444 |
| Voltage | 24V DC (solenoid valve) |
| Country of Origin | Japan |
| Weight | 4.2 kg |
| Dimensions | Bore 100mm, Stroke 150mm, Overall Length 380mm |
| Warranty | 6 months |
| Certifications | CE, JIS B8370, ISO 15552 |
| SKU / MPN | CAC4-G4-100B-150-Y1-FL657444 |
| What’s in the box | Pneumatic cylinder unit, mounting brackets, cushion adjustment screws, installation manual |
| Bore Size | 100 mm |
| Stroke Length | 150 mm |
| Operating Pressure | 0.1 to 1.0 MPa (14.5 to 145 PSI) |
| Cushion Type | Adjustable air cushion (both ends) |
| Mounting Style | Foot mount (G4) |
| Sensor | Magnetic reed switch (Y1) |
Key benefits: Adjustable air cushion for smooth deceleration, magnetic sensor compatibility, durable anodized aluminum body, high reliability, JIS/ISO compliant dimensions
Typical applications: Material handling, pick-and-place systems, packaging machinery, assembly line pushers, clamping fixtures, conveyor indexing
Lifecycle: Active product, 10+ years availability expected
