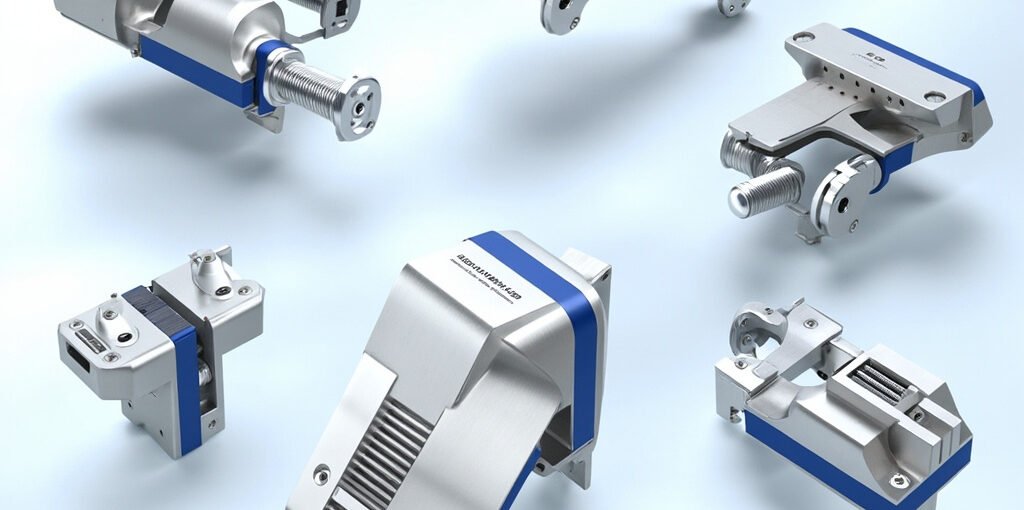

Pneumatic Gripper Selection: A Complete Guide to Choosing the Right One

Selecting the right pneumatic gripper is a critical decision in industrial automation, directly impacting productivity, product quality, and operational costs. Whether you are designing a new robotic cell, upgrading an existing pick-and-place system, or optimizing a packaging line, understanding the nuances of gripper selection can mean the difference between seamless operation and costly downtime. This comprehensive guide walks engineers, technicians, and procurement professionals through every essential consideration when choosing a pneumatic gripper for their application.

A pneumatic gripper is a mechanical device that uses compressed air to open and close jaws, enabling it to grasp, hold, and manipulate objects. Compared to electric or servo-driven alternatives, pneumatic grippers offer faster cycle times, simpler control, lower upfront cost, and excellent reliability in harsh environments. However, the wide variety of designs—parallel, angular, three-jaw, rotary, and specialty grippers—makes informed selection crucial.

Understanding the Main Types of Pneumatic Grippers

Before diving into specifications, it is essential to understand the structural categories of grippers, as each offers distinct advantages for specific tasks.

1. Parallel Grippers

Parallel grippers move their two jaws in a straight line toward and away from the workpiece. They provide consistent gripping force across the entire stroke, making them ideal for handling cylindrical or rectangular parts in assembly, machining, and testing operations.

2. Angular Grippers

Angular grippers open and close along an arc, typically ranging from 10° to 30°. Their compact design and pivoting motion are perfect for confined spaces, such as electronics assembly or small-parts handling where parallel motion would be obstructed.

3. Three-Jaw and Multi-Jaw Grippers

Three-jaw grippers center round or irregularly shaped components automatically, providing exceptional stability for symmetrical parts. They are widely used in lathe automation and round-part feeding.

4. Rotary Grippers

Rotary grippers combine gripping with rotational motion in a single compact unit. They are excellent for parts requiring reorientation between stations, reducing the need for additional axes or mechanisms.

Key Selection Criteria for Pneumatic Grippers

Choosing the optimal gripper requires evaluating multiple mechanical, environmental, and economic factors. Below is a structured approach used by automation professionals worldwide.

  1. Workpiece Characteristics: Analyze the part’s weight, dimensions, material (metal, plastic, glass, etc.), surface finish, and fragility. A delicate glass component requires lower, controlled gripping force, while a heavy steel forging demands maximum clamping power.
  2. Required Gripping Force: Calculate the necessary force using the formula F = (m × g × S) / (2 × μ), where m is mass, g is gravity, S is a safety factor (typically 2–3), and μ is the friction coefficient between jaw and workpiece.
  3. Stroke Length: The jaw travel must accommodate the largest and smallest parts in your product mix. Insufficient stroke leads to mis-grips, while excessive stroke reduces precision.
  4. Operating Pressure and Air Consumption: Standard pneumatic grippers operate at 4–8 bar. Verify that your compressed air system can deliver consistent pressure and check air consumption per cycle for energy efficiency calculations.
  5. Cycle Speed: High-speed applications such as packaging require grippers with sub-50 ms open/close times, while heavy-duty machining may prioritize force over speed.
  6. Environmental Conditions: Consider temperature extremes, exposure to dust, coolants, water, or chemicals. Stainless steel or coated grippers are essential for washdown, food-grade, or corrosive environments.
  7. Mounting and Integration: Confirm compatibility with your robot or machine tool. Most grippers follow ISO 9409 flange standards, but legacy systems may require adapters.
⚠ Engineering Tip: Always apply a safety factor of at least 2.0 when calculating gripping force. Undersizing a gripper is the single most common cause of dropped parts, tool damage, and production stoppages. For fragile or deformable parts, consider compliant jaws or force-controlled grippers instead of simply increasing clamping pressure.

Comparing Common Pneumatic Gripper Specifications

The table below summarizes typical performance ranges across gripper categories to help you benchmark your requirements.

Gripper TypeTypical Stroke (mm)Gripping Force per Jaw (N)Operating Pressure (bar)Cycle Time (ms)Best Use Case
Parallel (Compact)4 – 2020 – 2504 – 820 – 60Electronics, small parts
Parallel (Heavy Duty)10 – 80300 – 5,0004 – 850 – 200Automotive, machining
Angular10° – 30°15 – 8004 – 815 – 50Confined spaces, fast pick
Three-Jaw3 – 2540 – 1,2004 – 830 – 100Round/cylindrical parts
Rotary (Grip + Index)5 – 4030 – 1,5004 – 840 – 150Reorientation tasks

Application-Specific Selection Guidelines

Pick-and-Place and Packaging

In high-speed packaging lines, prioritize short cycle times and lightweight grippers to minimize robot inertia. Angular grippers with integrated springs can maintain grip during pressure loss, enhancing safety. Use FDA-compliant materials for food packaging applications.

CNC Machine Tending

For loading and unloading CNC machines, choose grippers with high gripping force, excellent coolant resistance, and integrated position sensing. IP67-rated sealed units are recommended to withstand chips and cutting fluid.

Assembly Operations

Precision assembly demands grippers with repeatability under 0.05 mm and adjustable or soft-close jaws to prevent part damage. Look for grippers with linear force curves and minimal backlash.

Collaborative Robots (Cobots)

Collaborative applications benefit from grippers with built-in force sensing, soft fingertips, and rounded edges. Pneumatic grippers designed for cobots often include quick-change mounts and low-noise operation for human-safe environments.

Common Mistakes to Avoid in Gripper Selection

  • Ignoring part tolerance stack-up: Even a 0.1 mm variation in workpiece dimensions can cause mis-gripping if the stroke is too tight.
  • Overlooking air supply quality: Contaminated, wet, or unfiltered air destroys seals and actuators. Always install FRL (Filter-Regulator-Lubricator) units upstream.
  • Choosing the wrong jaw material: Hard steel jaws on soft aluminum parts will cause deformation. Use urethane, rubber, or diamond-coated fingers for delicate surfaces.
  • Undersizing for dynamic loads: Acceleration and deceleration forces during robot motion can multiply effective part weight by 2–4 times. Always account for these inertial effects.
  • Neglecting maintenance access: Sealed or compact grippers may be efficient but harder to service. Plan for preventive maintenance windows.
