Description

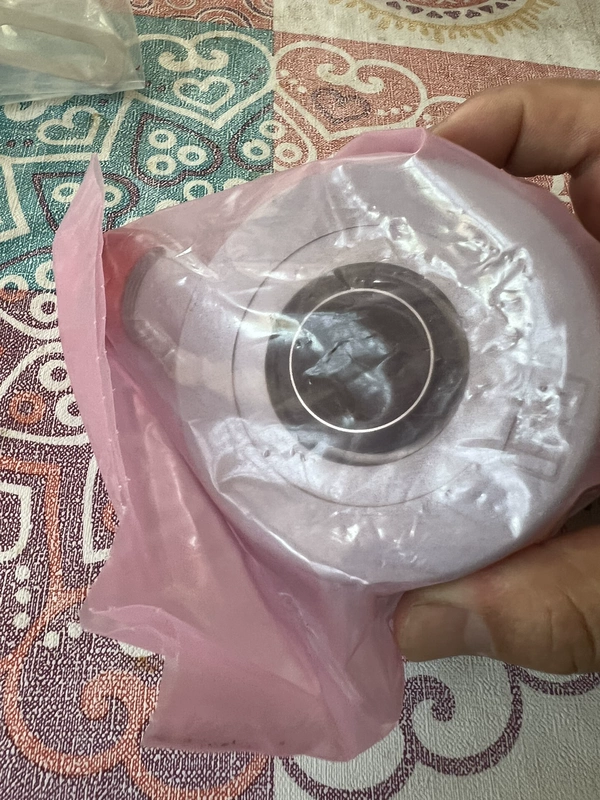

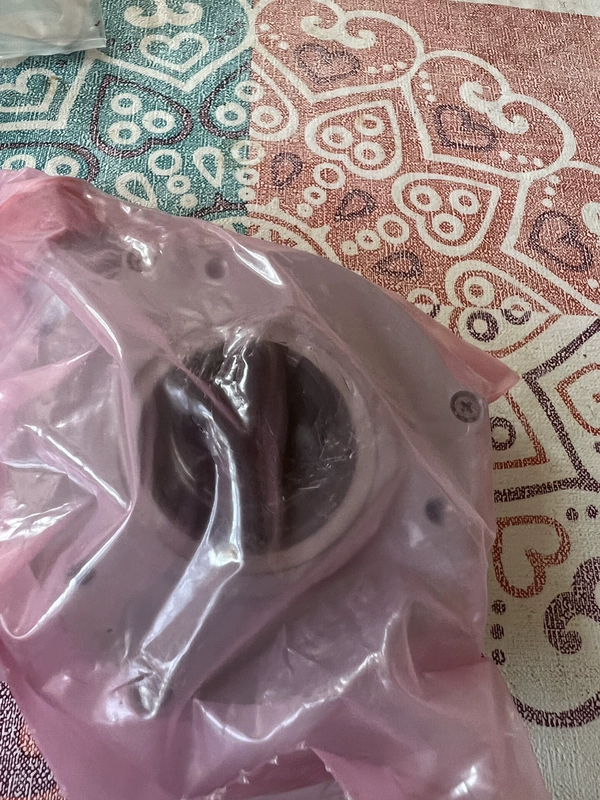

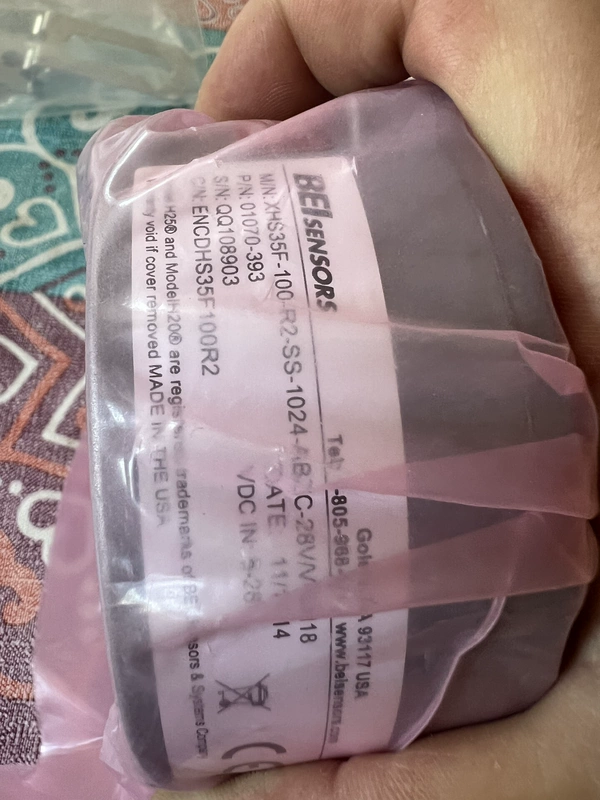

BEI Sensors XHS35F-100-R2-SS-1024-ABZC-28V/V-SM18
High-resolution industrial encoder for accurate rotary position and speed feedback in demanding automation systems
| Brand | BEI Sensors |
| Model | XHS35F-100-R2-SS-1024-ABZC-28V/V-SM18 |
| Voltage | 28 VDC |
| Country of Origin | United States |
| Weight | Approximately 0.7 kg |
| Dimensions | Approximately 88 mm diameter x 76 mm length |
| Warranty | 6 months |
| Certifications | CE, UL recognized |
| SKU / MPN | XHS35F-100-R2-SS-1024-ABZC-28V/V-SM18 |
| What’s in the box | BEI Sensors encoder, connector, mounting hardware, installation documentation |
| Encoder Type | Incremental optical rotary encoder |
| Resolution | 1024 pulses per revolution |
| Output Signals | A, B, Z and complementary outputs |
| Shaft Configuration | 28 mm through-bore shaft |
| Housing | Industrial stainless steel construction |
| Electrical Interface | SM18 connector, 28 VDC operation |
Key benefits: Reliable incremental feedback, 1024 PPR resolution, quadrature direction sensing, index pulse capability, rugged stainless steel housing, and broad industrial compatibility
Typical applications: Motor feedback, servo systems, conveyors, packaging machinery, machine tools, material handling, and factory automation equipment
Lifecycle: Current industrial product; availability subject to manufacturer production and supply conditions
