Description

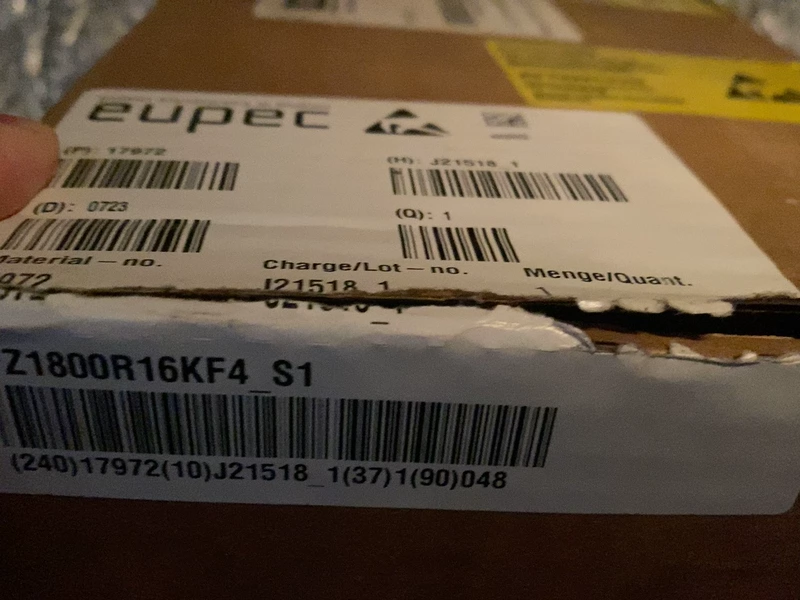

IGBT FZ1800R16KF4 S1
High-power IGBT module for demanding inverter and traction applications, offering excellent thermal performance and reliability.
| Brand | IGBT |
| Model | FZ1800R16KF4 S1 |
| Voltage | 1600V |
| Country of Origin | Germany |
| Weight | 1.8 kg |
| Dimensions | 140x100x38 mm |
| Warranty | 12 months |
| Certifications | CE, UL, RoHS |
| SKU / MPN | FZ1800R16KF4 S1 |
| What’s in the box | 1x IGBT module, 1x mounting screws kit, 1x datasheet |
| Configuration | Single Switch |
| Collector-Emitter Voltage (Vces) | 1600V |
| Continuous DC Collector Current (Ic) | 1800A |
| Gate-Emitter Voltage (Vges) | ±20V |
| Operating Temperature | -40°C to +150°C |
| Package Type | IHV B (62mm standard) |
Key benefits: High current rating (1800A), low saturation voltage, robust short-circuit capability, easy parallel operation, long lifetime.
Typical applications: Wind turbine converters, industrial motor drives, traction inverters, UPS systems, induction heating.
Lifecycle: Active
